FEATURE (QSC E112)
CATALOG QSC E112.pdf
*สอบถามราคาโทร 089-7784447*

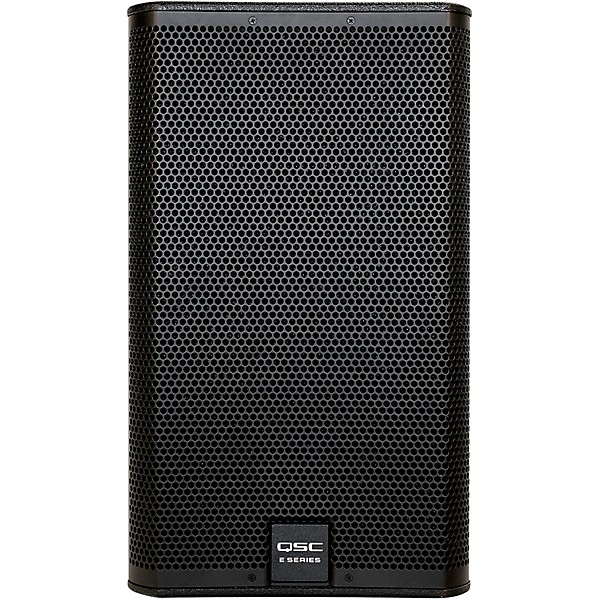

QSC E112 ลำโพงตู้ขนาด 400 วัตต์ ที่คุ้มค่าและเหมาะสมกับการเลือกใช้งาน
The QSC E112 is a trapezoidal, two-way loudspeaker, well suited for sound reinforcement applications including live performance, DJ and dance music, karaoke, and event production. The E112 requires an amplifier with a minimum of 400W continuous (1600W peak) to power the 12″ woofer and 1″ compression driver that combine to offer a frequency response of 64 Hz to 20 kHz (-6 dB) with a peak SPL of 128 dB.
(QSC E112 LOUDSPEAKER 400 W.)
1. QSC E112 * High-output, professional-quality sound with 400W continuous (1600W peak) power handling
2. QSC E112 * E-Series Entertainment System: advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers
3. QSC E112 * E-Series Entertainment System DSP tunings are available for PLD and GXD processing amplifiers.
4. QSC E112 * Rugged tour-grade textured paint
5. QSC E112 * Foam-lined perforated steel grille
6. QSC E112 * Dual-angle pole socket
7. QSC E112 * Optional accessories include Transport covers M10 eyebolt kit
SPECIFICATION (QSC E112)
| Configuration |
12.0″ / 304.8 mm, 2-way, non-powered |
| Frequency Response |
64 Hz to 20 kHz (-6 dB) |
| Frequency Range |
46 Hz – 20 kHz (-10 dB) |
| Power Capacity |
400 W (continuous) / 1600 W (peak) |
| Sensitivity |
Sensitivity (1 W at 3.3′ / 1 m): 96 dB |
| Coverage Angle |
85° conical DMT |
| Output |
128 dB |
| Drivers |
LF: 12.0″ / 304.8 mm driver with 3.0″ / 76.2 mm voice coil
HF: 1.0″ / 25.4 mm exit, 1.8″ / 44.5 mm voice coil, compression driver |
| Nominal Impedance |
8 Ohms |
| Crossover |
Full-range only, 1.8 kHz |
| Input Connectors |
2 x NL4
1 x barrier strip |
| Enclosure |
Trapezoidal plywood |
| Carrying Options |
Two side-mounted handles |
| Grille |
Perforated, powder-coated steel grille with foam lining |
| Pole Mount |
Dual angle, 1.4″ / 35.0 mm pole-socket |
| Dimensions |
14.2 x 24.2 x 14.6″ / 360.7 x 614.7 x 370.8 mm |
| Weight |
51.0 lb / 23.1 kg |
SERVICE/CONTACT (QSC E112)
สอบถามราคา QSC E112 เวลาทำการ 8.30-17.30 น.
ขอใบเสนอราคา QSC E112 ส่งเข้า Email : highclasssound@gmail.com
การสั่งซื้อสินค้า QSC E112 กรุณาโทรสอบถามสินค้าก่อนการโอนเงินทุกครั้ง
