FEATURE (BOSCH PLN-6TMW)
CATALOG BOSCH PLN-6TMW.pdf
*สอบถามราคาโทร 089-7784447*

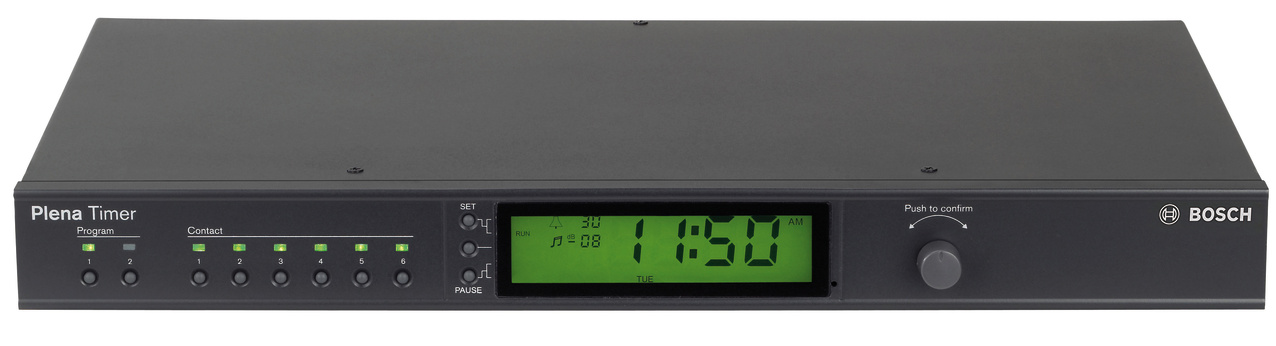

BOSCH PLN-6TMW เครื่องตั้งเวลา Weekly timer
(BOSCH PLN-6TMW WEEKLY TIMER)
The Bosch PLN-6TMW Plena Weekly Timer is an accurate timer for use in public address systems for regular timed messages or other signals.
It is ideally suited for schools, shopping malls and all other venues that need regularly timed messages, signals or other controls.
The PLN6TMW is ideal for connection to the LBB 1965/00 Plena Message Manager and Voice Alarm System.
Two weekly schedules are available and events can be any length, programmable with an accuracy of one minute, with no upper limit on the number of events. A pause mode enables all actions, except the clock display, to be temporarily suspended.
Each event can trigger a chime, any combination of output contacts or a change in BGM volume - ideal for attenuating the music level in the evening.
The PLN 6TMW is 1U high and rack mounted using the rack mounting brackets supplied.
- Two weekly programs
- 14 Chimes
- Six contact outputs
- Automatic summer winter time
- BGM level control
- Hold and pause function
- Unit can be programmed standalone or via PC
- Ideal partner for Plena Message Manager or Plena Voice Alarm for timed messages
- 440x312x48mm (WxDxH)
- 1U high 19" rack-mountable
- Weight 3kg
SPECIFICATION (BOSCH PLN-6TMW)
|
Mains Power
|
|
|
Voltage
|
115/230 Vac +/- 15%, 50/60 Hz
|
|
Max power consumption
|
30 W
|
|
Battery Power
|
|
|
Voltage
|
24 VDC, +15% / -15%
|
|
Current Max
|
1A
|
|
Performance
|
|
|
Frequency response
|
20 Hz to 20 kHz (-3 dB)
|
|
Total Harmonic Distortion
|
< 0.01 % (1kHz)
|
|
S/N
|
<85 dB
|
|
Dynamic range
|
>100 dB
|
|
Inputs / Outputs
|
|
|
Line input
|
1 x
|
|
Connector
|
XLR balanced
|
|
Sensitivity
|
1 V
|
|
Impedance
|
>5 kohm
|
|
Headroom
|
>25 dB
|
|
Line Output
|
1 x
|
|
Connector
|
XLR balanced
|
|
Impedance
|
>100 ohm
|
|
Accuracy (without sync)
|
25 ºC: better than <2 s/month-10 ºC to 55 ºC: <3.5 s/month
|
|
Sync input
|
Normally Open (NO), contact closure synchronizes to the nearest hour
|
|
Connector
|
MC 1,5/6-ST-3,5
|
|
Rating
|
100 V, 1 A, voltage free
|
|
Physical
|
|
|
Dimensions (H x W x D)
|
48 x 440 x 312 mm 1.88 x 17.32 x 12.28 inch (without brackets, with feet)
44 x 483 x 312 mm 1.73 x 19.01 x 12.28 inch (with brackets, without feet)
|
|
Weight
|
Approx. 3 kg
|
|
Mounting
|
Standalone, 19” rack
|
|
Colour
|
Charcoal with silver
|
