TOA VM-2240 เครื่องขยายเสียง 240 วัตต์ สามารถแบ่งได้ 5 โซน และสามารถประกาศเสียงแยกแต่ละโซนได้ มีช่องต่อไมโครโฟนอินพุท 3 ช่อง,ช่องต่อ AUX 2 ช่อง และช่องบันทึกเสียง 1 ช่อง ใช้ได้ทั้งระบบไฟ AC และ DC ได้
(TOA VM-2240 H MANAGEMENT AMPLIFIER 240 W. 5 ZONE)
1. TOA VM-2240 เครื่องขยายเสียง 240 วัตต์ สามารถประกาศแยกโซนลำโพงได้อย่างอิสระ 5 โซน
2. TOA VM-2240 ความถี่ตอบสนอง 50 Hz - 16,000 Hz
3. TOA VM-2240 มีช่องต่อไมโครโฟนอินพุท 3 ช่อง,ช่องต่อ AUX 2 ช่อง และช่องบันทึกเสียง 1 ช่อง
4. TOA VM-2240 สามารถเลือกกดปุ่มประกาศที่ไมค์ RM-200M ได้ 5 โซน
5. TOA VM-2240 สามารถเลือกโซนเปิดเพลงได้ 5 โซน
6. TOA VM-2240 สามารถปรับเสียงทุ้มและเสียงแหลมได้
7. TOA VM-2240 สามารถต่อพ่วงกับ Booster Amplifier เพื่อเพิ่มประสิทธิภาพในการใช้งานได้
8. TOA VM-2240 สามารถใช้ได้ทั้งระบบไฟ AC และ DC ได้

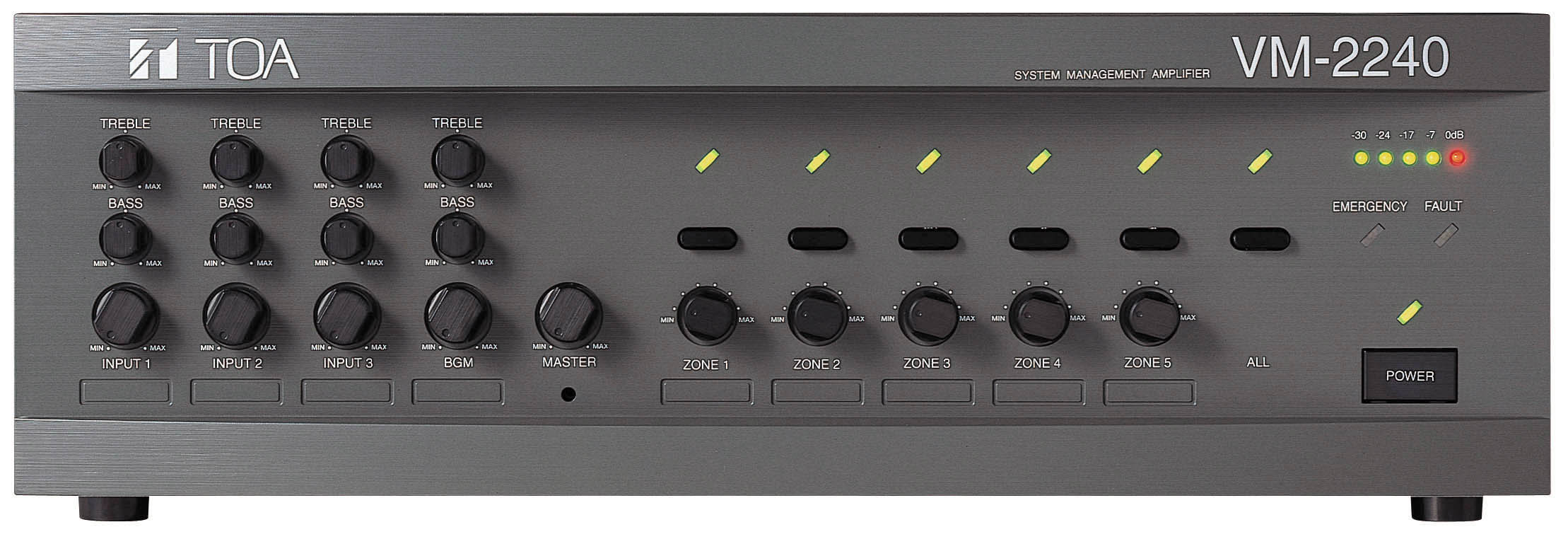

The VM-2240 is a multifunctional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size). The unit comes with 4 audio inputs including the background music input, and the speaker output section which has an internal attenuator and 5-zone selector. It permits not only general-purpose broadcast, but also Emergency Broadcast based on the EN60849 Standard which gives pre-recorded voice instructions(*1) in the emergency situation. Broadcast can be made from an optional RM-200M Remote Microphone as well as from the amplifier, and can be remotely controlled from external equipment. In addition, for 100 V/42 Ω application the unit features the surveillance function(*2) which automatically checks the system for failures. (*1) An optional EV-200M Voice Announcement Board is required. (*2) An optional SV-200MA Surveillance Board is required.
VM-2240 System Management Amplifier
VM-2240
Description
The VM-2240 is a multifunctional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size). The unit comes with 4 audio inputs including the background music input, and the speaker output section which has an internal attenuator and 5-zone selector. It permits not only general-purpose broadcast, but also Emergency Broadcast based on the EN60849 Standard which gives pre-recorded voice instructions(*1) in the emergency situation. Broadcast can be made from an optional RM-200M Remote Microphone as well as from the amplifier, and can be remotely controlled from external equipment. In addition, for 100 V/42 Ω application the unit features the surveillance function(*2) which automatically checks the system for failures. (*1) An optional EV-200M Voice Announcement Board is required. (*2) An optional SV-200MA Surveillance Board is required.
SPECIFICATION (TOA VM-2240)
- (*3) 0 dB= 1 V
| Power Source |
AC: 230 V
DC: 24 V/15 A
Applicable cable diameter: AWG22 - AWG14 |
| Power Consumption on AC Mains |
With no signal present: 54 W
Under normal operating conditions according to
EN60065: 1998 sec. 4.2: 255 W
With rated output signal: 549 W |
| Current Consumption on 24 V DC Power Input |
With no signal present: 1 A
Under normal operating conditions according to
EN60065: 1998 sec. 4.2: 5 A
With rated output signal: 14 A |
| Rated Output |
240 W |
| Output Voltage /Impedance |
100 V/42 Ω
(selectable by the internal wiring change) |
| Frequency Response |
50 Hz - 16 kHz |
| Distortion |
1 % or less |
| Signal-to-Noise Ratio |
60 dB or more |
| Tone Control |
Bass: 100 Hz ±10 dB
(Inputs 1 - 3 and BGM individually adjustable.) |
| Remote Microphone /Expansion Amplifier Connection |
2 RJ45 female connectors for connecting the RM-200M Remote
Microphone and the VM-2120 or VM-2240 unit used as an
expansion amplifier.
Maximum distance: 800 m (874.89 yd) in total
Link cable: Category 5 Shielded
Number of connectable RM-200M's: Up to 4
Twisted-Pair straight cable (TIA/EIA-568A standard) |
| Input |
Inputs 1 - 3: -60 dB(*3) (MIC)/-10 dB(*3) (LINE) (changeable)
600 Ω
combined XLR connector (female)/phone jack
(Only Input 1 is additionally equipped with DIN
connector(*5).)
Telephone paging input: Push-in terminal block(*6)
Voice sound: -10 dB(*3)
balanced input with shield terminal(*4)
Control: No-voltage make contact input
open voltage: 3.3 V DC
short-circuit current: under 1 mA
BGM 1 - 2: -20 dB(*3)
Power amplifier input: 0 dB(*3)
External speaker line input: 100 V line
(This input is selected when the "Unit's
broadcast cutoff" control is activated.) |
| Output |
Speaker output: Plug-in screw connector(*7)
5-zone selector with attenuator (all zones simultaneously
selectable)
Direct speaker line output: Direct output from the power amplifier
output transformer (attenuator bypassed)
Plug-in screw connector(*7)
Line output: 0 dB(*3)
Recording output: 0 dB(*3)
Preamplifier output: 0 dB(*3) |
| Control Input |
For controlling Inputs 1 - 3
No-voltage make contact input
short-circuit current: 1 mA or less |
| Control Input and Output |
D-sub connector (25-pin
Input: No-voltage make contact input
short-circuit current: 1 mA or less
Output: Open collector output
control current: 10 mA or less
(1) External control input
Activation of messages(*8)
Activation of power
Activation and stop of Emergency Broadcast
Unit's broadcast cutoff
(when activated by an external emergency equipment)
(2) Status output
Irregularity of communications with the Remote Microphone and
an expansion amplifier
AC power condition
DC power condition
Irregularity of the sound source of the Voice Announcement Board
Failure (FAULT) indication on
Power switch on |
| External Attenuator Control Output |
Plug-in screw connector(*7)
transfer type
contact current: 7 A (DC) or less |
| Surveillance Input and Output(*9) |
D-sub connector (25-pin
Input: No-voltage make contact input
Output: Open collector output |
| Power Supply |
24 V DC/0.1 A
Unit RU-2001/-2002 |
| Chime Tone |
Built-in chime: 2-tone chime/2-tone chime (fast repeat)/4-tone
chime (Up)/Single-tone chime/4-tone chime (Up &
Down)/Gong/off
Voice Announcement Board sound source: Pre-recorded chime(*8) |
| Function |
Two units stacking (VM-2120 or VM-2240)
Emergency broadcast (sequential control)
Broadcast priority control
Surveillance (failure detection) function(*9)
Power supply to only one Remote Microphone (RM-200M)
Line resistance: 40 Ω (one way) or less |
| Operating Temperature |
0 ℃ to +40 ℃ (32 %%dF to 104 %%dF) |
| Finish |
Panel: ABS resin
Case: Steel plate |
| Dimensions |
419 (W) × 143.3 (H) × 355.7 (D) mm (16.5 × 5.64" × 14) |
| Weight |
14.5 kg (31.97 lb) |
| Accessory |
Power cable (2 m (6.56 ft)) ……1
Miniature type time-lag fuse T3.15 A ……1 |
| Option |
Rack mounting bracket: MB-36
Input transformer: IT-450
Voice announcement board: EV-200M
Surveillance board: SV-200MA |
